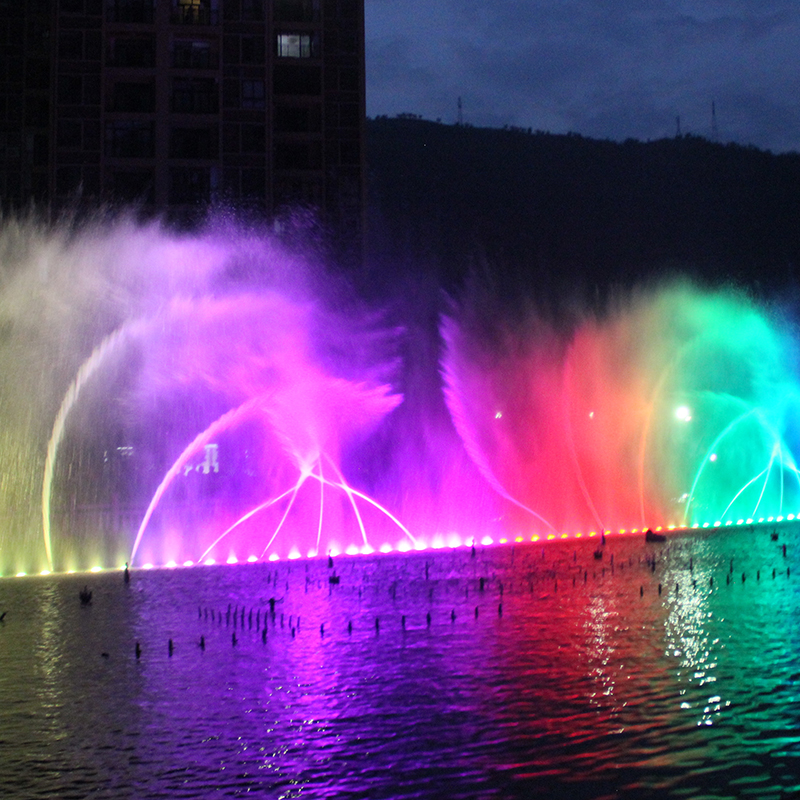

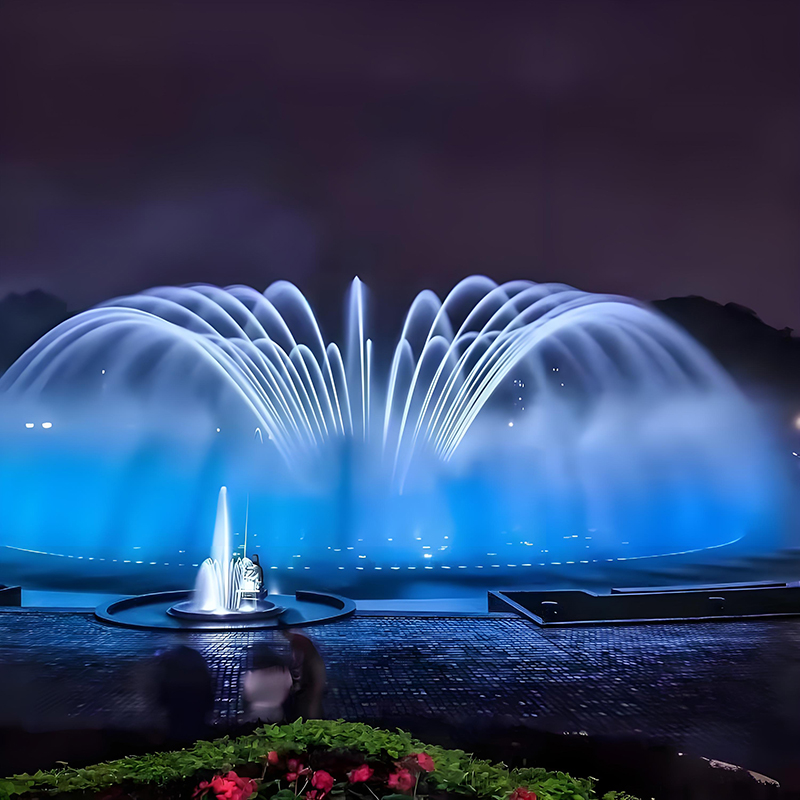

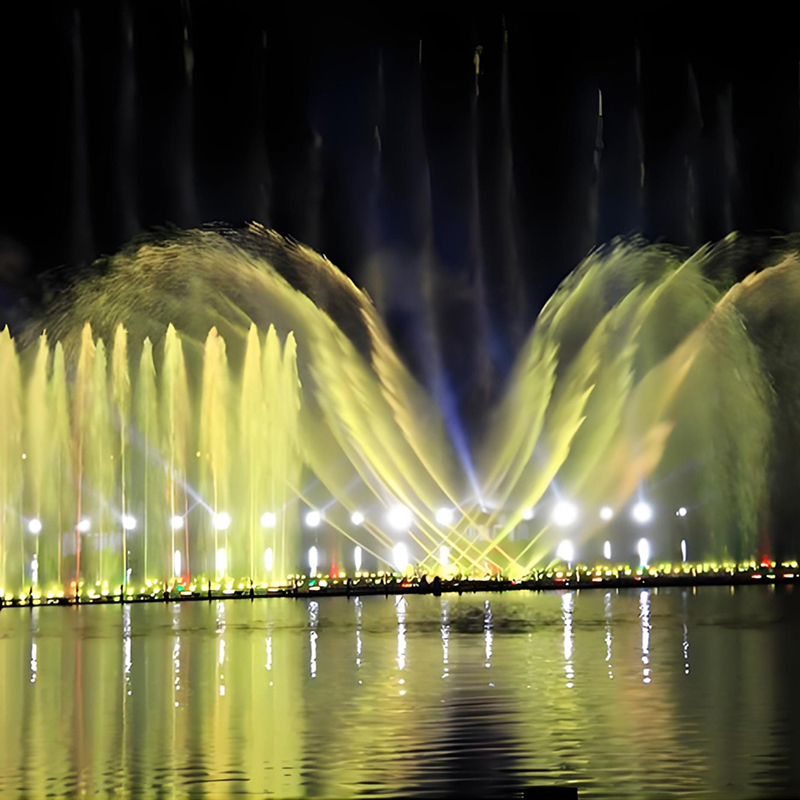

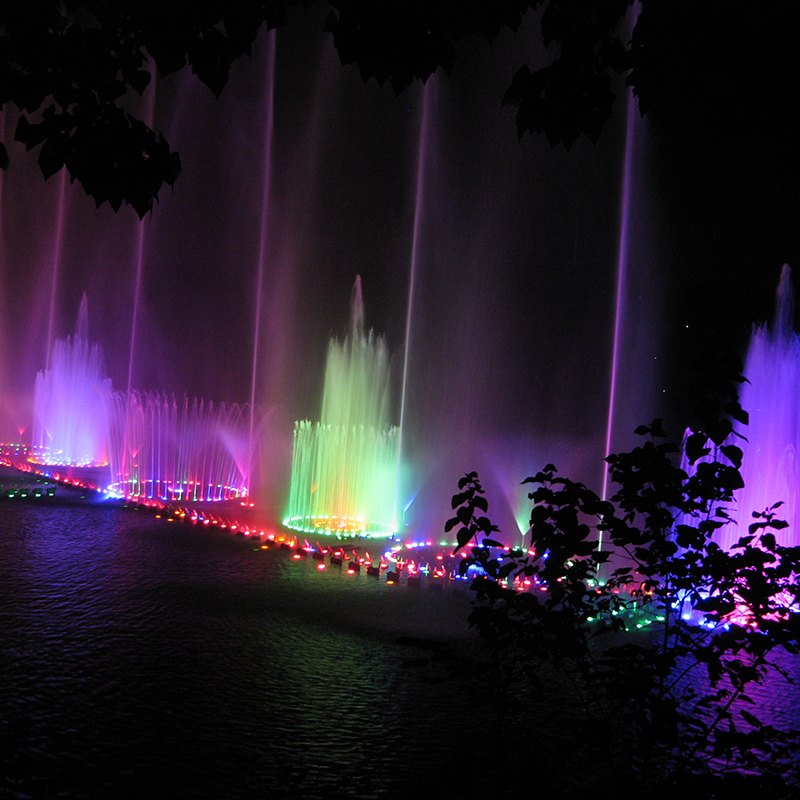

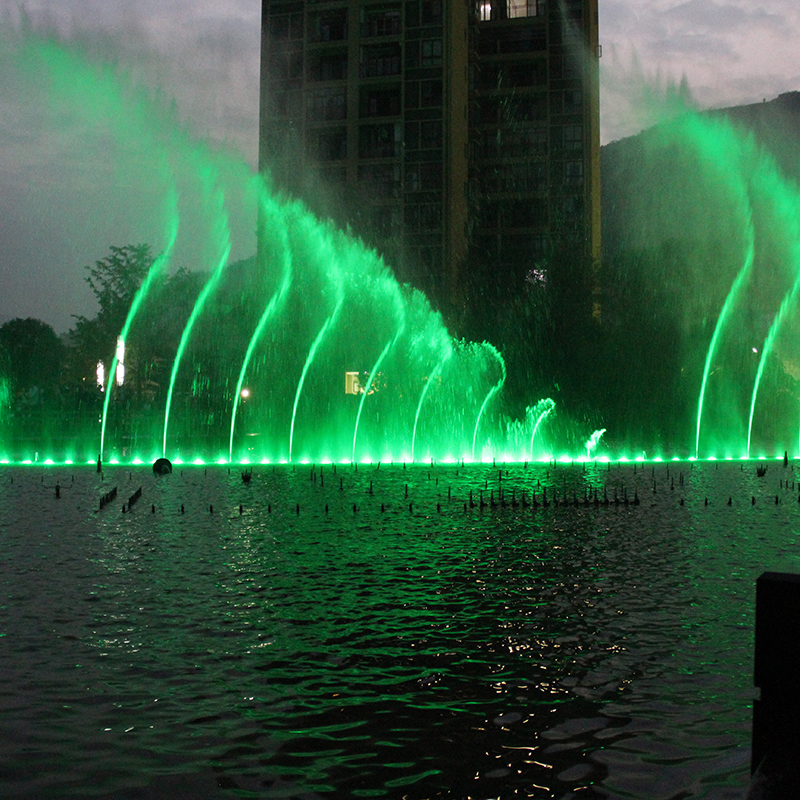

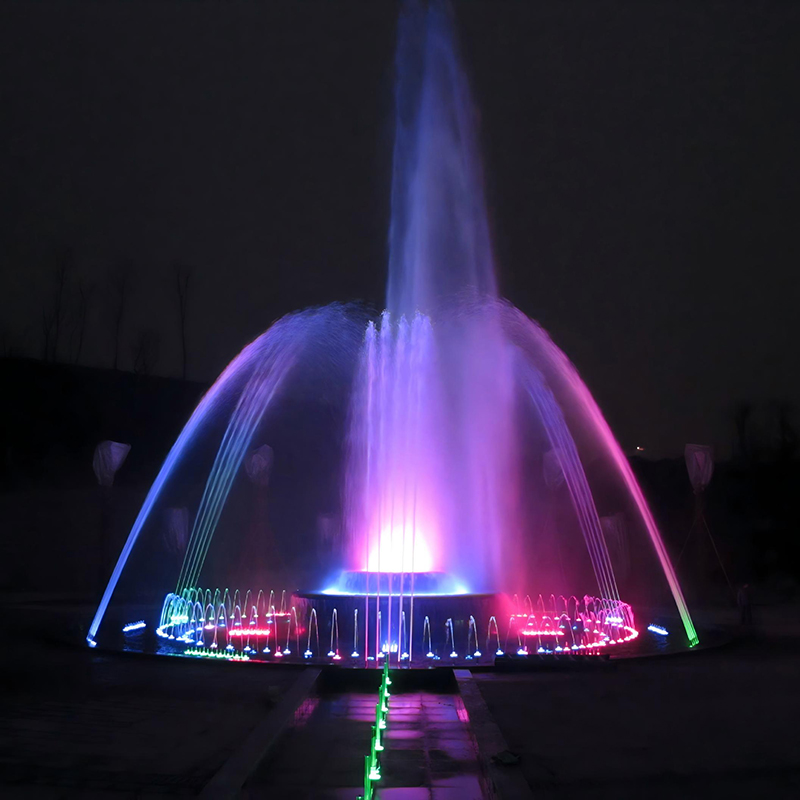

Large-Scale Digital Fountain

◆◆ Core Large-Scale & Digital Core Advantages

• Monumental Scale & Flexible Customization: Tailored to dominate large spaces with awe-inspiring dimensions:

• Ultra-large coverage: Modular design supports 100㎡-5000㎡+ installation, with customizable layouts (circular, linear, irregular, or waterfront-extended) to fit urban squares, lakefronts, or theme park central areas.

• Sky-high water effects: Precision digital valves enable jet heights from 5m to 50m (equivalent to a 15-story building), with super-wide spray spans (up to 30m) creating immersive "water curtains" or "water walls" that envelop audiences.

• Multi-zone control: Divided into 50+ independent control zones, allowing synchronized or independent water choreographies (e.g., wave surges, dancing jets, cascading waterfalls) across the entire fountain area.

• Structural adaptability: Compatible with various terrains (flat plazas, sloped landscapes, underwater installations) and can integrate with existing structures (bridges, buildings, waterfront promenades) for seamless landscape fusion.

• Cutting-Edge Digital Technology Integration: Powering grand-scale sensory experiences:

• 8K ultra HD projection mapping: Multiple high-lumen projectors (100,000+ lumens each) cast sharp, vivid visuals onto water curtains—displaying historical narratives, cultural symbols, brand stories, or dynamic animations (visible even in daytime).

• Smart synchronization system: Integrates water flow, lighting, projection, sound, and even fireworks (optional) into a unified spectacle, synced with music (classical, pop, custom soundtracks) or live events (concerts, festivals, New Year countdowns).

• IoT & AI intelligent control: Cloud-based programming platform with pre-built grand show templates + custom editing tools; AI adjusts water pressure, lighting brightness, and projection effects based on real-time factors (weather, crowd size, ambient light).

• Interactive audience engagement: Optional large-scale motion sensing (up to 20m detection range) or mobile APP crowd interaction—audience movements or APP inputs trigger synchronized water/light responses, turning spectators into participants.

• Rugged Durability & All-Weather Performance: Built to withstand large-scale outdoor operations:

• Heavy-duty construction: 316L marine-grade stainless steel frame + reinforced concrete base, resistant to corrosion, impact, and extreme weather (operating temperature: -30℃ to 75℃).

• All-weather protection: IP68-rated electrical components, waterproof projection enclosures, and wind-resistant nozzle design (stable performance in winds up to 8m/s) — operational in rain, snow, or intense sunlight.

• High-capacity water management: Closed-loop circulation system with large-flow filters (100m³/hour), UV-C disinfection, and automatic sediment removal; supports fresh or saltwater use (for waterfront projects) with 90% water recycling rate.

• Energy-efficient operation: LED lighting arrays (80% energy savings vs. traditional lamps), variable-frequency high-power pumps, and solar-wind hybrid power options (reducing operating costs by 35% for large installations).

◆◆ Target Large-Scale Scenarios

Our Large-Scale Digital Fountain is engineered to become the centerpiece of high-impact spaces:

• Urban Plazas & City Landmarks: Creates a city’s signature attraction with daily grand shows, driving tourism and enhancing urban image (e.g., central squares, waterfront promenades).

• Theme Parks & Amusement Resorts: Serves as a headline nighttime spectacle, complementing rides and attractions with story-driven water-light-projection shows that boost visitor stay time.

• Luxury Resorts & Hotel Complexes: Elevates resort prestige with exclusive, branded water shows (e.g., wedding backdrops, holiday celebrations) for guests, differentiating from competitors.

• Commercial Complexes & Malls: Draws massive foot traffic to large shopping centers or mixed-use developments, with synchronized shows that encourage repeat visits and extend dwell time.

• Cultural & Event Venues: Enhances concerts, festivals, or cultural events with dynamic water-light synchronization, turning ordinary events into unforgettable experiences (e.g., Olympic venues, World Expo sites).

◆◆ Landmark-Level Value & Impact

• Crowd Magnet: Attracts 500,000+ annual visitors for urban installations, generating media coverage and social media buzz (viral potential via spectator videos).

• Economic Driver: Boosts local businesses (restaurants, shops, hotels) with increased foot traffic; for commercial projects, lifts tenant occupancy and sales by 30%+.

• Cultural & Brand Legacy: Becomes a city or brand’s iconic symbol (e.g., Dubai Fountain-style recognition), building long-term cultural or brand equity.

• Flexible Usage: Programmable for daily shows, seasonal events (Christmas, National Day), or special occasions (concerts, corporate galas) — maximizing return on investment.

• Sustainable Operation: Low water consumption (90% recycled) and energy-efficient design align with green building standards and municipal sustainability goals.

◆◆ End-to-End Turnkey Service for Large-Scale Projects

We provide comprehensive support to ensure successful delivery of landmark projects:

1. Feasibility & Design Consultation: Conducts on-site terrain, weather, and traffic analysis; creates 3D renderings, show simulations, and engineering plans tailored to the space.

2. Custom Engineering & Production: Manufactures high-power pumps, large-scale projection systems, and modular fountain components in compliance with international engineering standards.

3. Professional Installation: Deploys a specialized team with experience in large-scale projects (100+ global installations), coordinating with local contractors for plumbing, electrical, and structural integration (installation time: 3-6 months for 1000㎡+ projects).

4. Show Design & Programming: In-house artistic team creates custom water-light-projection choreographies, including brand storytelling, cultural narratives, or event-specific shows.

5. Training & Maintenance: Provides comprehensive training for on-site teams; offers annual professional maintenance, remote monitoring, and show content updates (free quarterly theme updates for 3 years).

6. After-Sales Support: 3-year warranty for core components (pumps, projectors, controllers); 10-year warranty for structural parts; 24/7 emergency support for critical issues.

◆◆ Product Video

◆◆ FAQ

1. What defines a "Large-Scale Digital Fountain" and how is it different from standard digital fountains?

A Large-Scale Digital Fountain is defined by monumental size, high-power performance, and integrated landmark-level experiences:

Scale: Covers 100㎡-5000㎡+ (vs. standard digital fountains ) with jet heights up to 50m (15-story building) and spray spans up to 30m.

Technology: Integrates 8K projection mapping (multiple 100,000+ lumen projectors), 50+ independent control zones, and AI-powered synchronization (vs. standard 4K projection and ).

Purpose: Designed as a cultural/commercial landmark (driving tourism/events) vs. standard fountains’ decorative/ambient role.

Durability: Heavy-duty 316L marine-grade stainless steel and all-weather protection (operating -30℃ to 75℃) for 24/7 outdoor use.

2. What spaces are suitable for installing a Large-Scale Digital Fountain?

It’s engineered for large, high-traffic public or commercial spaces including:

Urban plazas, city centers, and waterfront promenades (municipal projects).

Theme parks, luxury resorts, and amusement complexes (leisure/tourism).

Large shopping malls, mixed-use commercial developments, and corporate campuses (commercial).

Cultural venues, Olympic parks, and World Expo sites (event/cultural landmarks).

Requirements: Flat or gently sloped terrain, access to sufficient water/power (see FAQ 5), and proximity to audience viewing areas.

3. How customizable are the water effects, projections, and shows?

Customization is unlimited to match brand, culture, or event needs:

Water Effects: 50+ independent zones enable custom choreographies (wave surges, dancing jets, cascading waterfalls, 50m-high "sky pillars") — synced to music or narratives.

Projections: 8K ultra HD content (historical stories, cultural symbols, brand logos, dynamic animations) — visible day/night; supports live feed integration (e.g., sports events, concerts).

Shows: Pre-built templates (daily ambient shows, holiday spectacles) + custom show design (e.g., wedding backdrops, New Year countdowns, brand launches) — adjustable duration (5-30 minutes).

Synchronization: Integrates with sound, fireworks, lasers, or live performances (e.g., orchestra, pop concerts) for multi-sensory experiences.

4. Can it withstand extreme weather (heavy rain, snow, strong winds, high temperatures)?

Yes — it’s built for all-weather outdoor durability:

Wind Resistance: Wind-resistant nozzles and AI-adjusted water pressure maintain stable effects in winds up to 8m/s (Beaufort Scale 5).

Extreme Temperatures: Operating range -30℃ (winter freeze protection via heated water lines) to 75℃ (heat-resistant pump cooling systems).

Rain/Snow/Dust: IP68-rated electrical components, waterproof projection enclosures, and self-cleaning nozzles (prevents clogging from debris).

Coastal Environments: Saltwater-resistant materials and anti-corrosion coatings for waterfront installations.

5. What are the water and power requirements for large-scale installations?

Requirements scale with fountain size (example for 1000㎡ fountain):

Water: Closed-loop system with 90% recycling rate; initial fill volume ~50,000L (13,200 gallons); daily replenishment ~5% (2,500L) for evaporation. Compatible with fresh/saltwater.

Power: 380V three-phase electricity; average consumption 100-300kW/hour (peak shows) — supports solar-wind hybrid power (reduces costs by 35%).

Infrastructure: Requires access to municipal water/power grids or on-site storage (water tanks, generators for backup).

6. How long does installation take, and what does the process involve?

Timelines vary by size — here’s a typical breakdown:

Pre-Installation (2-4 months): Feasibility study, terrain analysis, custom design, and engineering plans.

Production (3-6 months): Manufacturing of modular components (pumps, valves, projectors) and show programming.

On-Site Installation (3-6 months): Excavation, structural foundation, plumbing/electrical integration, and component assembly (1000㎡ fountain example).

Testing & Commissioning (1-2 months): System calibration, show rehearsals, and staff training.

Total timeline for 1000㎡+ projects: 9-18 months (faster for standard designs).

7. What maintenance is required, and how often?

Low maintenance for large-scale durability (annual time  hours):

Daily: Automated system self-check (water level, pump status, nozzle functionality) — no manual intervention.

Weekly: Filter cleaning (large-flow removable filters) and projection lens wipe (dust removal).

Monthly: UV-C disinfection lamp check and water quality testing (pH, sediment levels).

Seasonal: Winterization (drain lines, activate heating) or summer algae prevention.

Annual: Professional calibration (remote or on-site) and structural inspection — our team handles digital component tuning.

8. Is it safe for large crowds, including kids and pets?

Safety is prioritized for public spaces:

Crowd Protection: Non-slip viewing areas, safety barriers (adjustable height), and emergency stop buttons (visible every 50m).

Water Safety: Low-pressure perimeter zones (safe for kids/pets) and high-pressure inner zones (marked with warnings); UV-C disinfection (meets ISO 3696 drinking water standards).

Electrical Safety: Ground fault circuit interrupters (GFCI), insulated wiring, and flood sensors (shuts down system if water exceeds safe levels).

Emergency Protocols: Integrated with local security systems; quick-shutdown mode for incidents.

9. Does it comply with international engineering and safety standards?

Yes — all components meet global large-scale project requirements:

ISO 9001 (Quality Management System)

CE (European Union Safety Standards)

RoHS (Restriction of Hazardous Substances)

IP68 (Waterproof Rating for Electrical Components)

ASTM F1487 (Public Recreational Equipment Safety)

Municipal engineering codes (plumbing, electrical, structural) — region-specific compliance documents provided.

For waterfront projects: Complies with environmental standards (no water pollution, marine life protection).

10. What after-sales services and warranty do you provide?

Comprehensive support for long-term landmark performance:

Warranty: 3-year warranty for core components (pumps, projectors, controllers); 10-year warranty for 316L stainless steel structure and concrete foundation.

24/7 Emergency Support: Dedicated team for weather-related issues (storm damage, extreme temperature adjustments) or system malfunctions.

Show Updates: Free quarterly seasonal show content (e.g., Christmas, summer festivals) for 3 years; custom show design available at discounted rates.

Training: On-site team training (2-day session) on system operation, show programming, and basic maintenance.

Replacement Parts: Global warehouse for fast delivery of critical parts (3-5 days for pumps/projections; 1-2 weeks for structural components).

Remote Monitoring: IoT-enabled real-time system tracking (water level, power consumption, component status) to prevent issues proactively.
